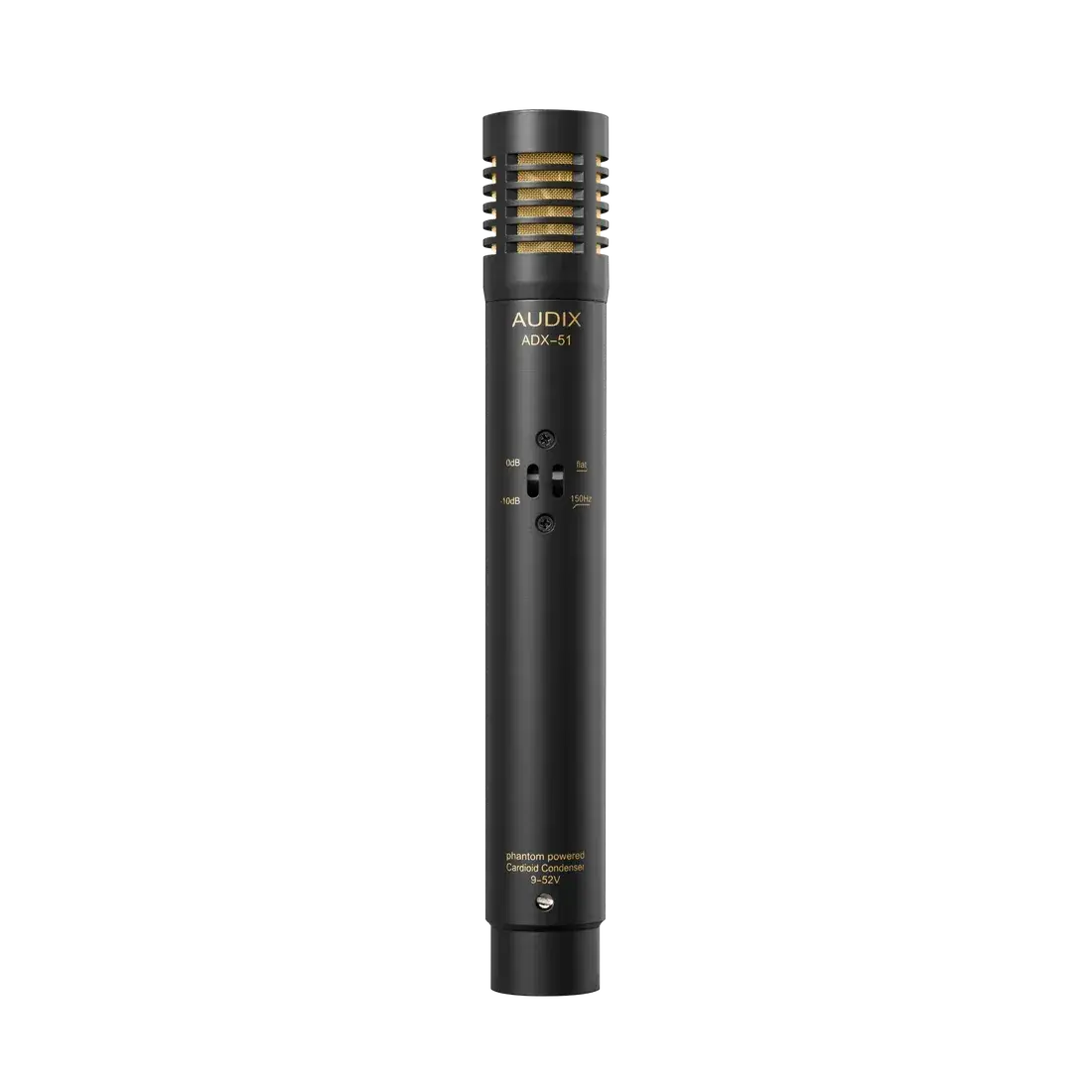

Audix ADX51 Condenser Microphone

The ADX51 is a pre-polarized condenser microphone designed to handle a wide variety of live, studio and broadcast applications. Characterized with a cardioid pickup pattern and a smooth uniform response over a frequency range of 40-20k Hz, the ADX51 is precision machined from solid brass with a low reflective black e-coat finish.

The ADX51 is designed with low noise electronic circuitry, balanced output, and switches that enable a 10 dB pad and a bass roll-off. The ADX51 is road-worthy and capable of handling high sound pressure levels of 142dB.

Applications:

Overhead for Drums / Percussion:  Bells, cymbals, hi-hat, goodie table
Acoustic instruments:  Guitar, piano, saxophone, orchestra (zone miking)
Group vocals:  ADX51 may be used as a hanging mic or on a stand to pick up group vocals for ensemble, choirs or plays. Two mics may be positioned overhead or in front of the group, at a distance of 4-6 feet apart.
Specifications:

Transducer Type:  Condenser (pre-polarized)
Frequency Response:
40 Hz - 18 kHz
150 Hz - 18 kHz (with low cut filter)
Polar Pattern:  Cardioid
Output Impedance:  100 Ohms balanced
Open Circuit Sensitivity:  15.9 mV (ref 1k @ 1 Pascal)
Equivalent Noise Level:  29 dB (A weighted)
Signal to Noise Ratio:  65 dB (ref 1k @ 1 Pascal)
Power Requirements:  9 - 52v phantom
Maximum SPL:  132 dB
Cable/Connector:  3 pin gold plated male XLR connector
Polarity:  Positive voltage on pin 2 relative to pin 3 of output XLR connector
Housing:  Machined Brass
Weight:  5 oz/143 grams
