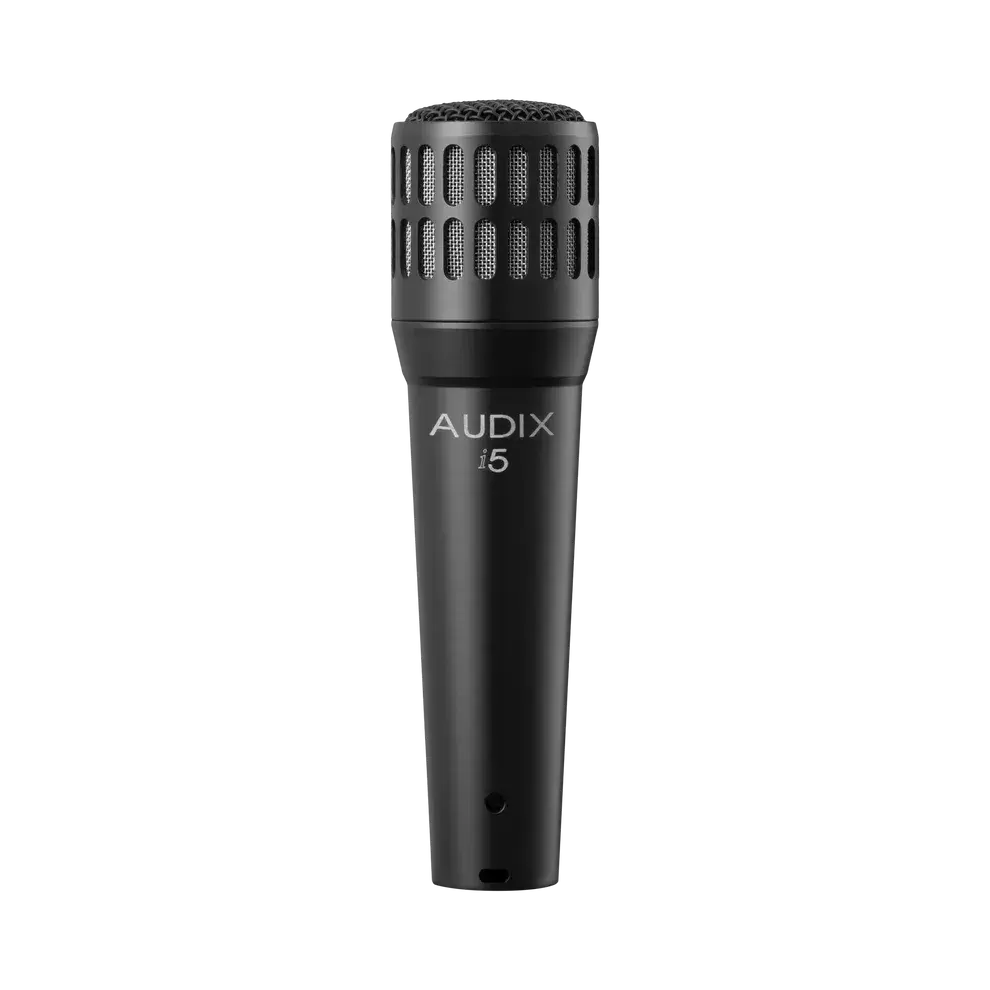

Audix i5 Instrument Microphone

The i-5 is a professional dynamic instrument microphone designed for a wide variety of applications for live sound and studio performance.  Characterized with a cardioid pick-up pattern and a frequency response of 50 Hz–15 kHz, the i-5 is an ideal choice for snare, toms, percussion instruments, electric guitar cabs, brass, and acoustic instruments. Clear, accurate, and able to handle sound pressure levels in excess of 140 dB, the i-5 can also be utilized for speech and vocals.  Transformerless design, low impedance, and balanced output allow interference free performance, even with long cable runs.  The i-5 housing and grill are precision cast parts made of zinc-alloy metal, with durable black e-coat finish.

Applications:

• Live stage, studio
• Snare, toms, percussion
• Guitar cabs, electric instruments
• Brass, flute, woodwinds
• Acoustic instruments
• Vocals, speech

Features:

• Clear and accurate sound reproduction
• Handles high SPL without distortion
• Provides exceptional gain before feedback
• Provides excellent isolation on stage
• Precision cast zinc alloy body and grill
• Extremely durable

Specifications:

• Transducer Type Dymamic
• Frequency Response 50 Hz - 16 kHz
• Polar Pattern Cardioid
• Output Impedance 150 Ohms
• Sensitivity 1.9 mV (ref 1k @ 1 Pascal)
• Capsule Technology VLM Type B
• Off Axis Rejection >23 dB
• Maximum SPL 140 dB
• Cable/Connector 3 pin gold plated male XLR connector
• Polarity Positive voltage on pin 2 relative to pin 3 of output XLR connector
• Housing Cast zinc alloy
• Finish Black E-coat
